Robotic Pan&Tilt

Video
PTR-10 Robotic pan tilt head

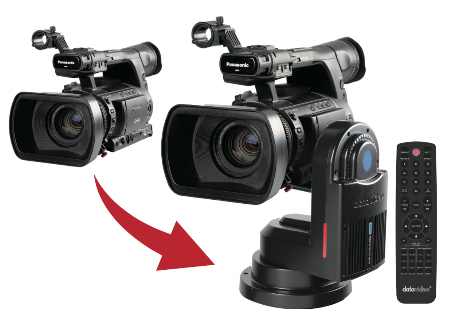

The PTR-10 is a robotic pan-tilt head designed to turn any block camera or camcorder into a PTZ camera.
Using the idea of Datavideo PTC series of cameras, PTR-10 can provide accurate Pan Tilt position information for users to track the movement.
With a weight of 3.8kg, it can be placed on a tripod or mounted on the wall/ceiling.

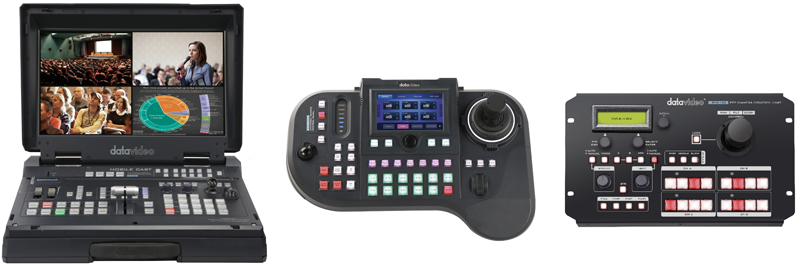

PTR-10 can be controlled by IR controllers, VISCA protocol controller, RMC180 camera controller, RMC-280 TVS controller and also compatible with serial, Ethernet, DVIP.
Pan and tilt camera head
  • Robotic Pan Tilt Head

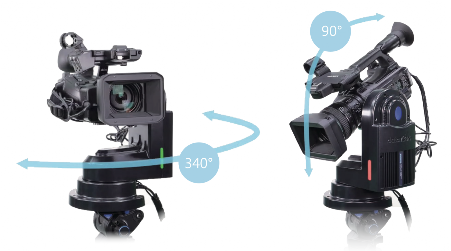

  • 340° Pan range, 90° tilt range
  • Supports both SDI and HDMI input/output
  • Especially designed for block cameras with power supported
  • Tally light built-in, great for Live events
  • Controlled by IR controller, VISCA protocol controller, RMC-180 camera controller, RMC-280 TVS controller and also compatible with serial, Ethernet (DVIP)
  • Sharing the same technology with Datavideo PTZ cameras, making it possible to do tracking with TVS-2000A
  • 12~18V input, power both the Robotic Head and also the Camera
  • DVIP / RS-422 control
Camera Pan and tilt control
Excellence doesn't just happen It's by design
