4G Web Streaming
Video

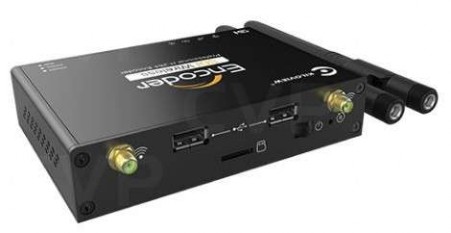

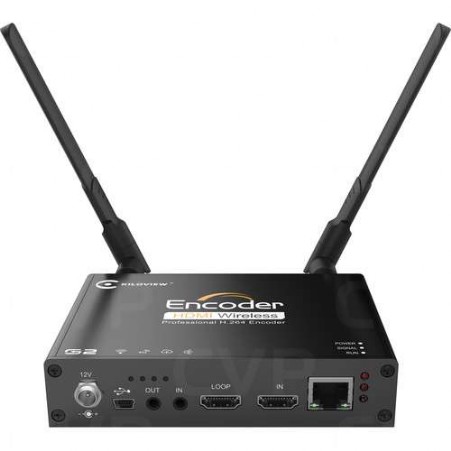

G2 1080P HDMI/SDI to IP 4G-LTE
Wireless Video Encoder
Kiloview G2 wireless video encoder can convert the full 1080P HDMI video source to IP signal without loss and push to internet streaming broadcast platforms through Ethernet, built-in Wifi or 4g network to realize video transmission, which makes live broadcasting available at anytime and anywhere. Kiloview G2 encoder is widely applied in hotel TV system, school teaching, video conference. G2 encoder has approved by CE,FCC,ISO,etc.
Built-in WIFI module, wireless video transmission/live broadcast supported.
● Built-in dual-band (2.4G/5.8G Hz) wifi module, USB 4G-LTE Dongle supported, it supports wireless transmission/ live broadcast of mobile video sources in local space.
● Built-in self-adaptive Ethernet interface, wired network transmission also supported.
● Low power consumption, 24 hours continuous working available.
Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif/ and SRT protocols, supports image and characters overlay, voice intercom and other functions.
● RTSP/ RTMP/ HLS/ TS/ Onvif/ SIP/ NDI (Customization available) and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform / NVR system.
● SRT supported to ensure secure and reliable transmission
● Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p60Hz video encoding.
● Capable with customized text and image overlay function, which can be at any position on the screen.
● Audio embedding encoding supported, with voice intercom function (need to deploy voice intercom software).
● With SD/TF card slot, it supports local recording, and supports NAS network storage.
● With video real-time loop function, there is no delay and it is convenient for live monitoring.

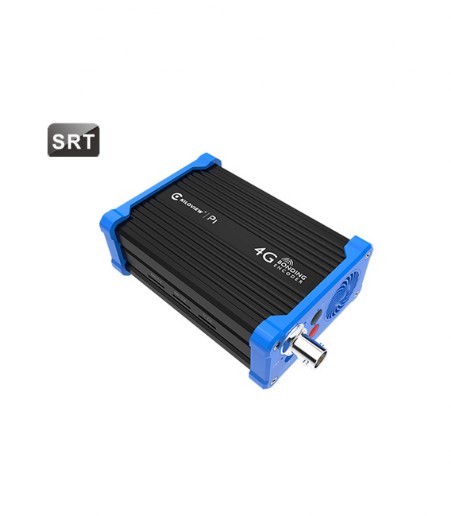

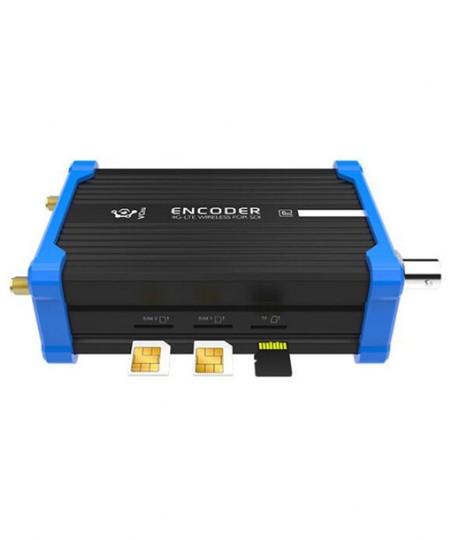

P1 4G Bonding SDI Video Encoder for Outdoor Live
broadcast
Kiloview P1 video encoder is a professional high-end encoding device specially designed for mobile applications. It can encode SDI video source , then transmit it to the internet live broadcast platforms through multi-channels 4G-LTE network (bonding). It also supports wired/wifi network transmission. P1 encoder has approved by CE,FCC,ISO,etc.
Reliable & portable video encoding transmission, suitable for a variety of outdoor live broadcast applications.
● Total weight is only 400g (including battery), with hot shoe bracket, it can be mounted on camera for portable application.
● Supports 5 channels bonding including 4 channels 4G-LTE and 1 channel Wifi/Ethernet by USB, transmission bandwidth is greatly expanded to improve the reliability of video wireless transmission.
● Built-in large-capacity lithium battery lasts about 3 hours, it also supports 5-16v external mobile power supply, making continuous working possible.
● Internal cooling fan makes the encoder adapting to high temperature conditions, stable and reliable operation.
Advanced encoding and transmission technology, Kiloview P series video encoder has high bandwidth adaptability, makes it possible to transmit high-definition, low-latency, good image under low bit network.
● With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission. Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network.
● Advanced video buffering technology, dynamic rate adjustment technology, FEC technology and links aggregation technology to ensure video encoding delay ≤ 67ms and stable transmission.
● Adjustable bit rate from 64kbit/s～40Mbit/s.
Powerful streaming media service function, supports RTSP/RTMP/TS/Onvif and SRT protocols, supports image and characters overlay, voice intercom and other functions
● RTSP/ RTMP/ HLS/ TS/ Onvif/ SIP（customization avaliable）and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform / NVR system.
● SRT supported to ensure secure and reliable transmission.
● Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding.
● Capable with customized text and image overlay function, which can be at any position on the screen.
● Voice intercom function (need to deploy voice intercom software).
● With SD/TF card slot, it supports local recording, and supports NAS network storage.
